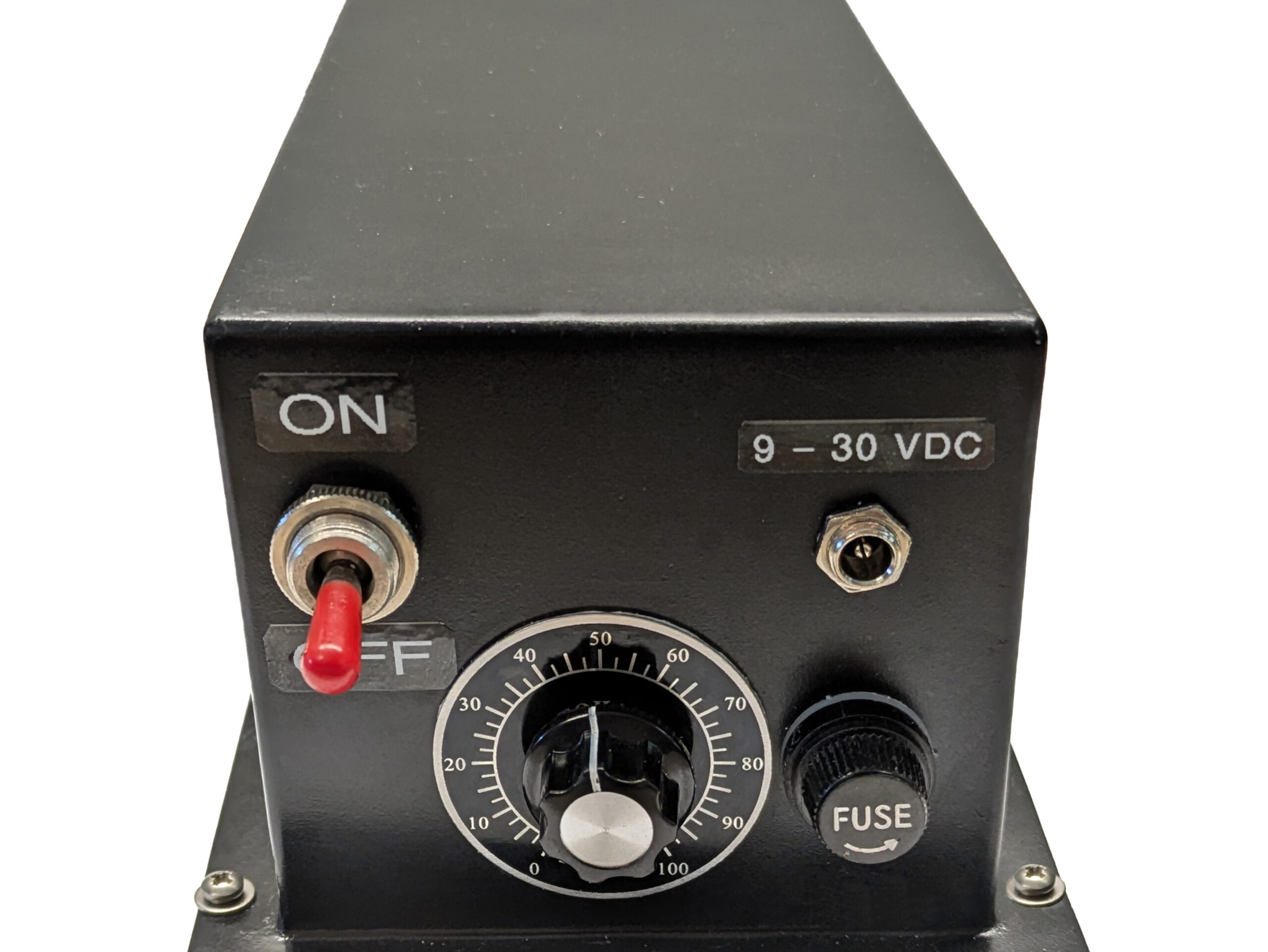

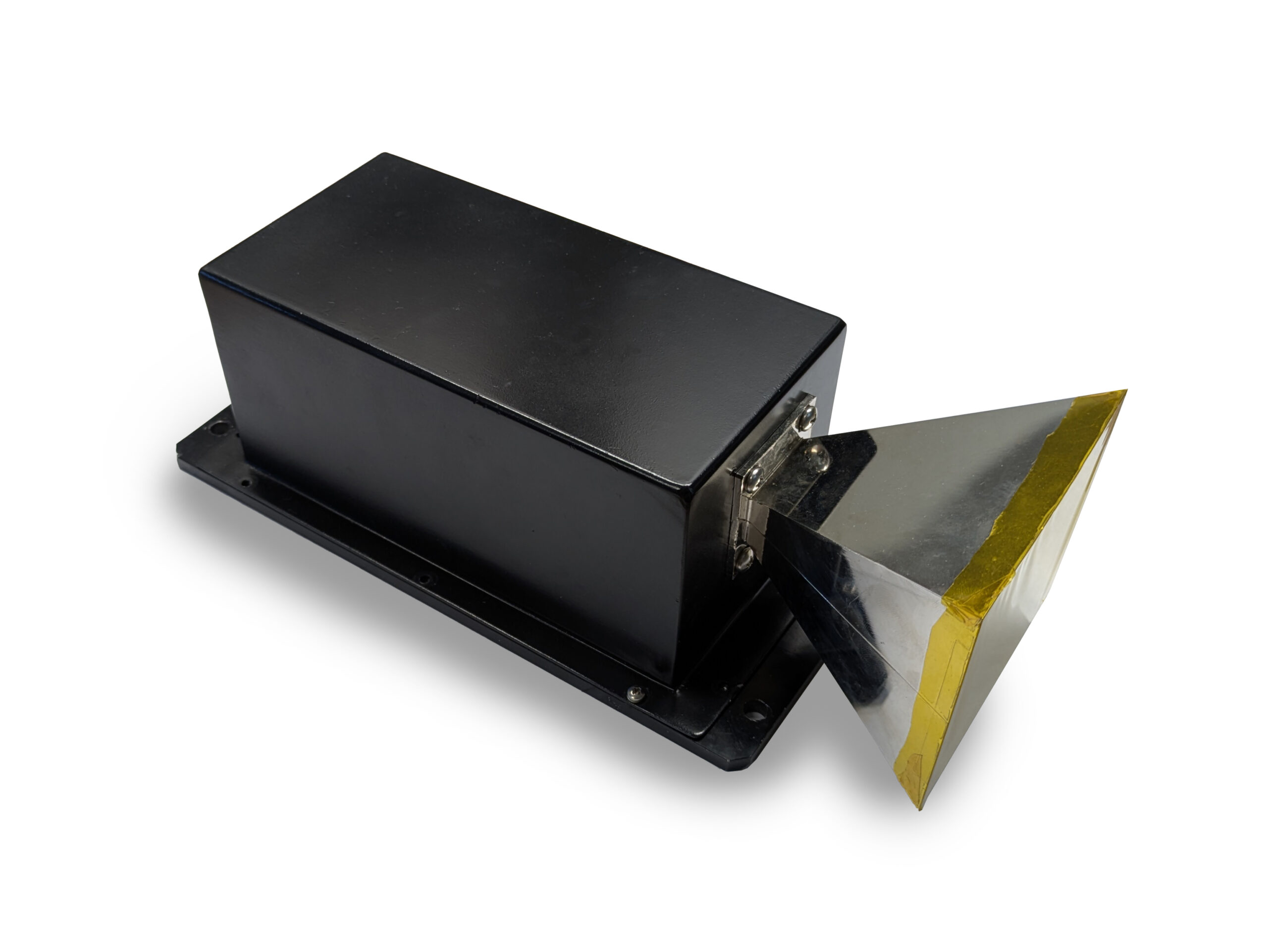

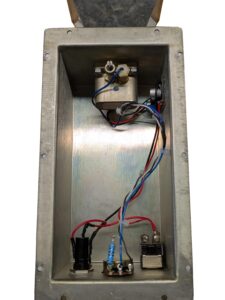

The generator is based on a Gunn oscillator module tunned to a 10.368 GHz frequency. If necessary, the frequency can be adjusted mechanically by rotating the screw on the oscillator in the range of 9.3 – 10.9 GHz. A potentiometer installed on the front panel of the device allows you to change the frequency electronically in a range of 20 MHz. Due to waterproof case, the device is suitable for outdoor applications.
Specifications:
- Input Voltage: 9 – 30 VDC
- Oscillator Power: 40 mW
- Frequency: 10.368 Ghz
- Frequency Adjustment: ± 10 Mhz
