4-WAY HF ANTENNA SPLITTER COMBINER RX PCB 50 Ohm 0.1-50 MHz, RS450-239-PCB

HF Antenna RX splitter – very useful device on your HF / DX listener station. It has one antenna port and four receivers ports.

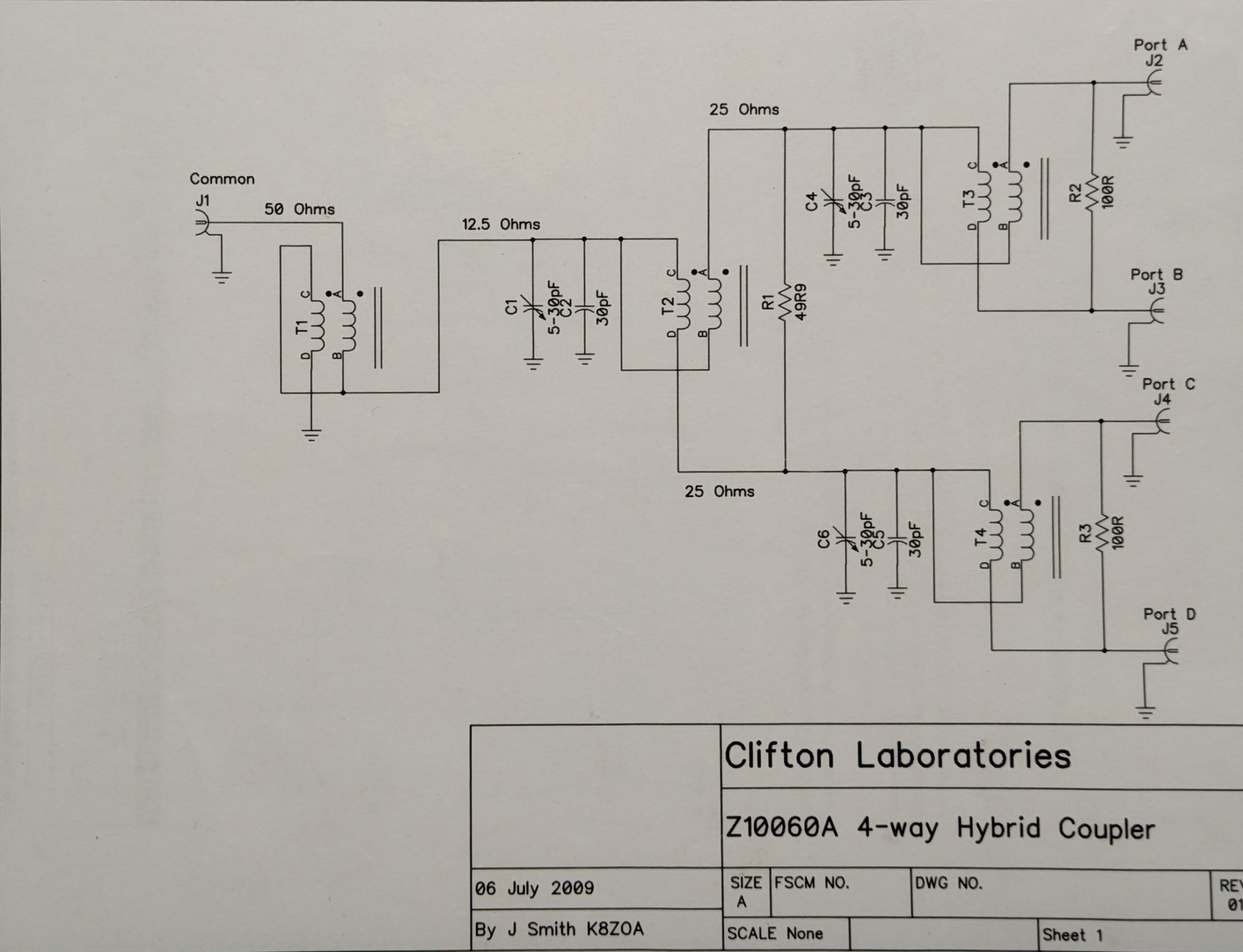

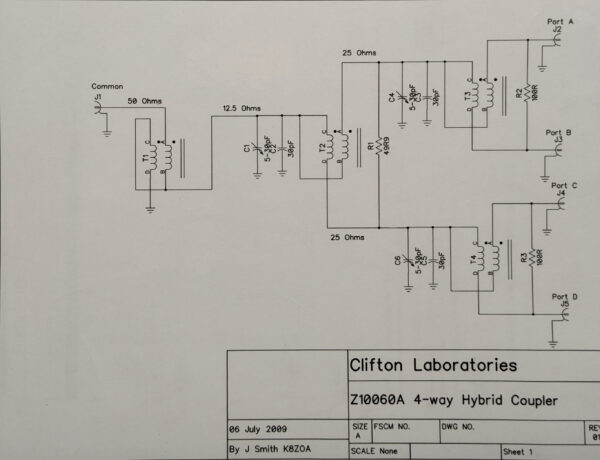

This hybrid coupler (splitter) designed by Clifton Laboratories http://cliftonlaboratories.com.

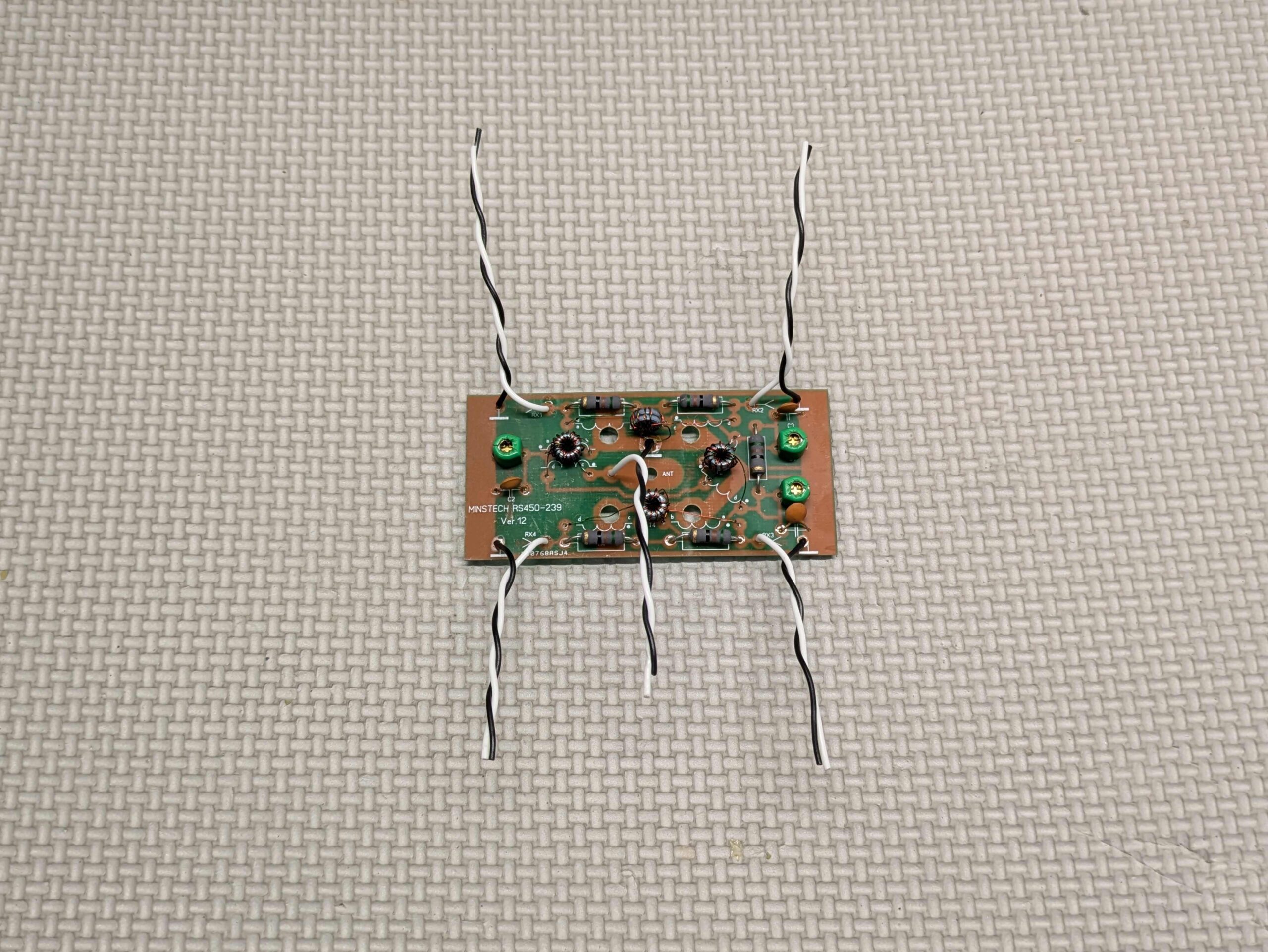

We use their original DIY KITs to build our splitters with SO-239 connectors. This PCB you can use in your own splitter design.

Specification:

• Frequency range: 100 kHz – 54 Mhz
• Impedance (I/O) – 50 Ohm
• Average port to port isolation measured – 29 dB.
• Average signal attenuation(loss) – 6.5 dB.
