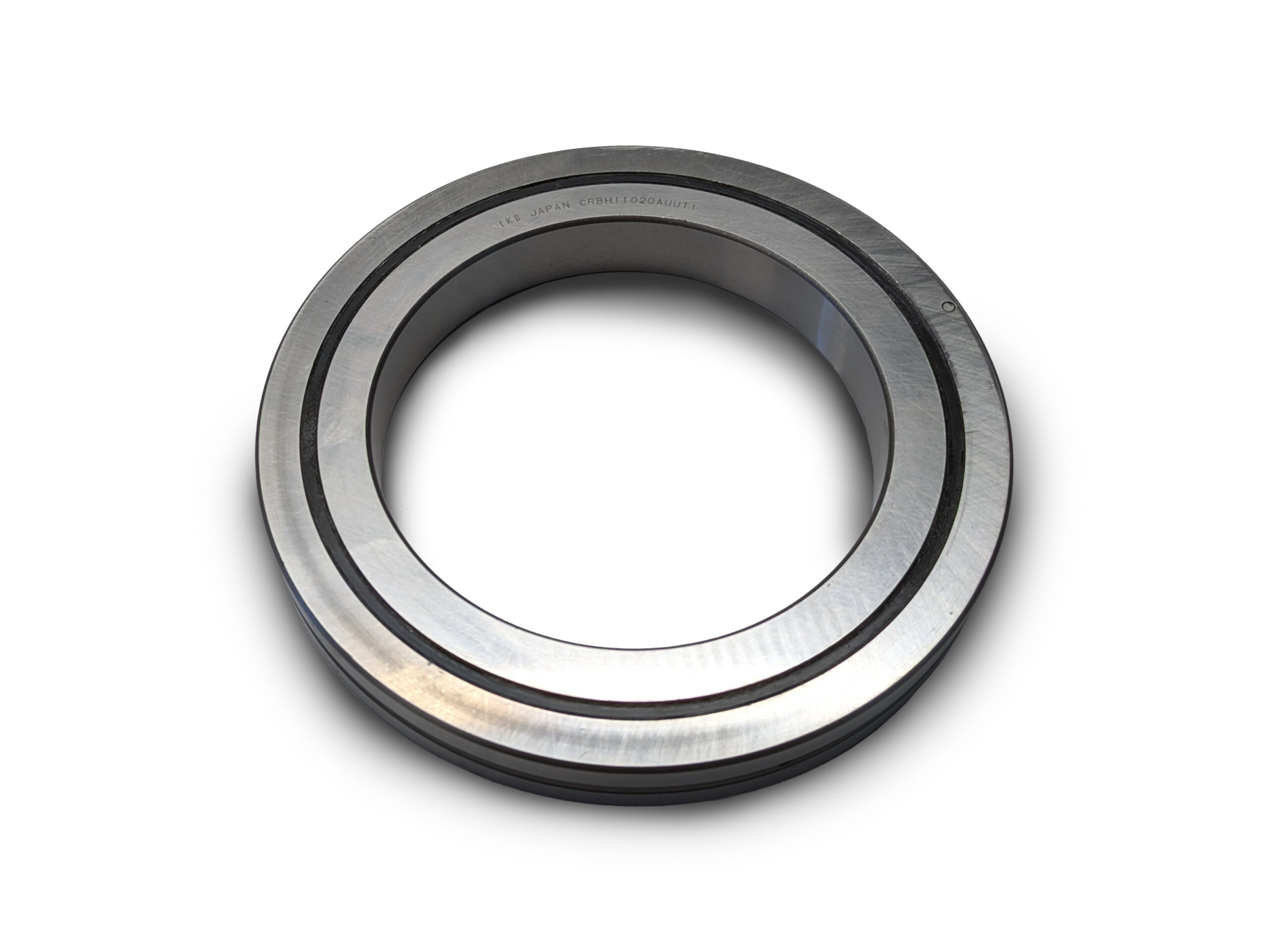

Crossed Roller Bearing good for Ham Radio projects, might be used as thrust bearing.
-
- Solid, one-piece construction for high accuracy
- Inseparable design combines inner and outer ring into one structure for high rigidity
- Smooth rotation is ensured by separators incorporated between cylindrical rollers, making them suitable for high rotational speeds
- Two-side sealed type with T1 clearance, class 0 accuracy
Specifications:
-
- Bore Diameter: 110 mm
- Outside Diameter: 160 mm
- Overall width: 20 mm
- Weight: 3.44 lbs
- Radial Dynamic Load Capacity: 52400N
- Radial Static Load Capacity: 77400 N
- Precision Rating: JIS, Class 0
- Operating Temperature Range: – 20 °C to + 110 °C
