Top Band Loop Antenna Kit 50 Ohm for HAM RADIO 80/160 meters and SWL. For Flag, Pennant or Diamond small loops.

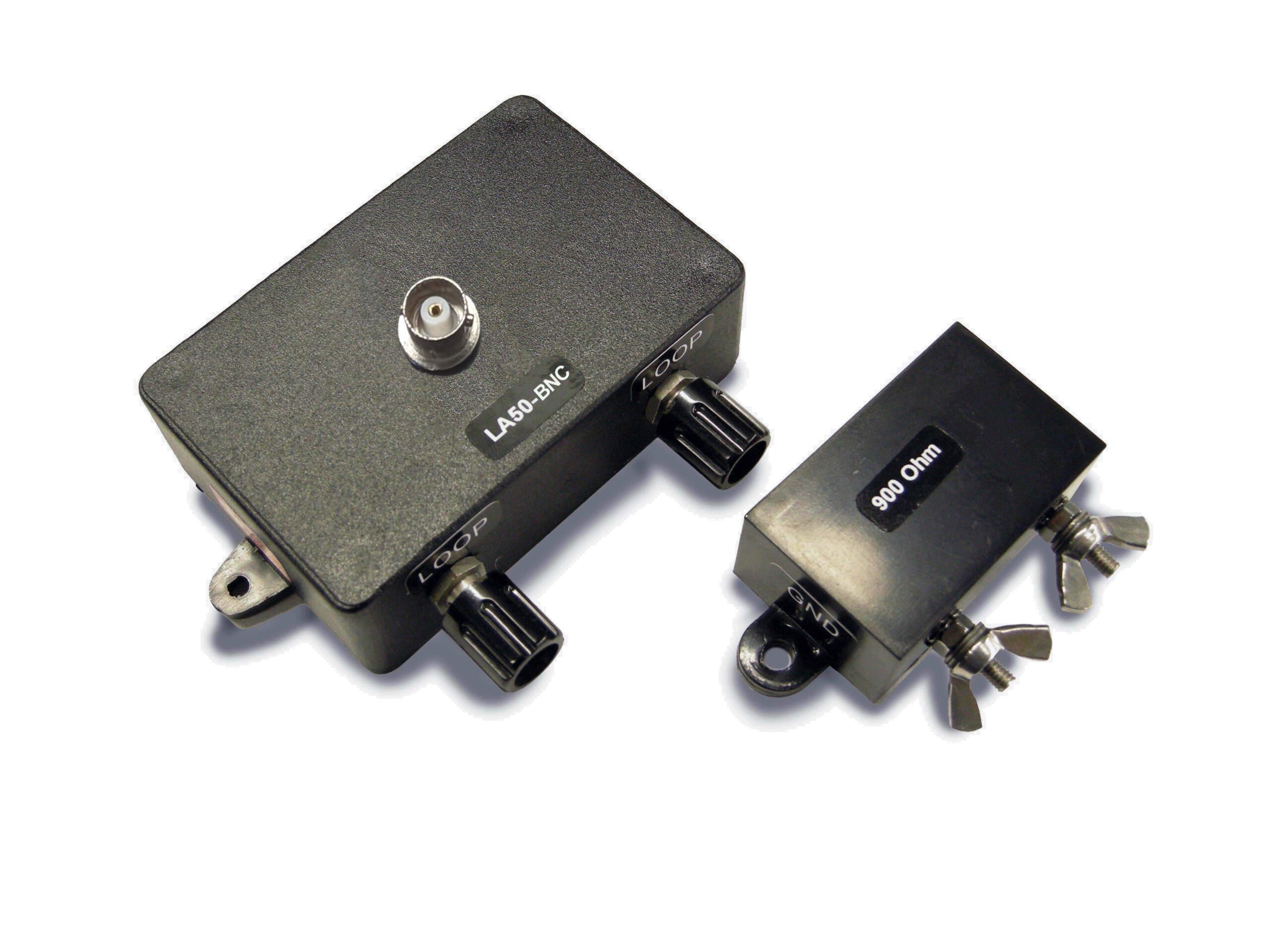

You will get 18:1 ISOLATED transformer in waterproof box & 910 ohm / 3 watt non-inductive termination resistor – also in waterproof box.

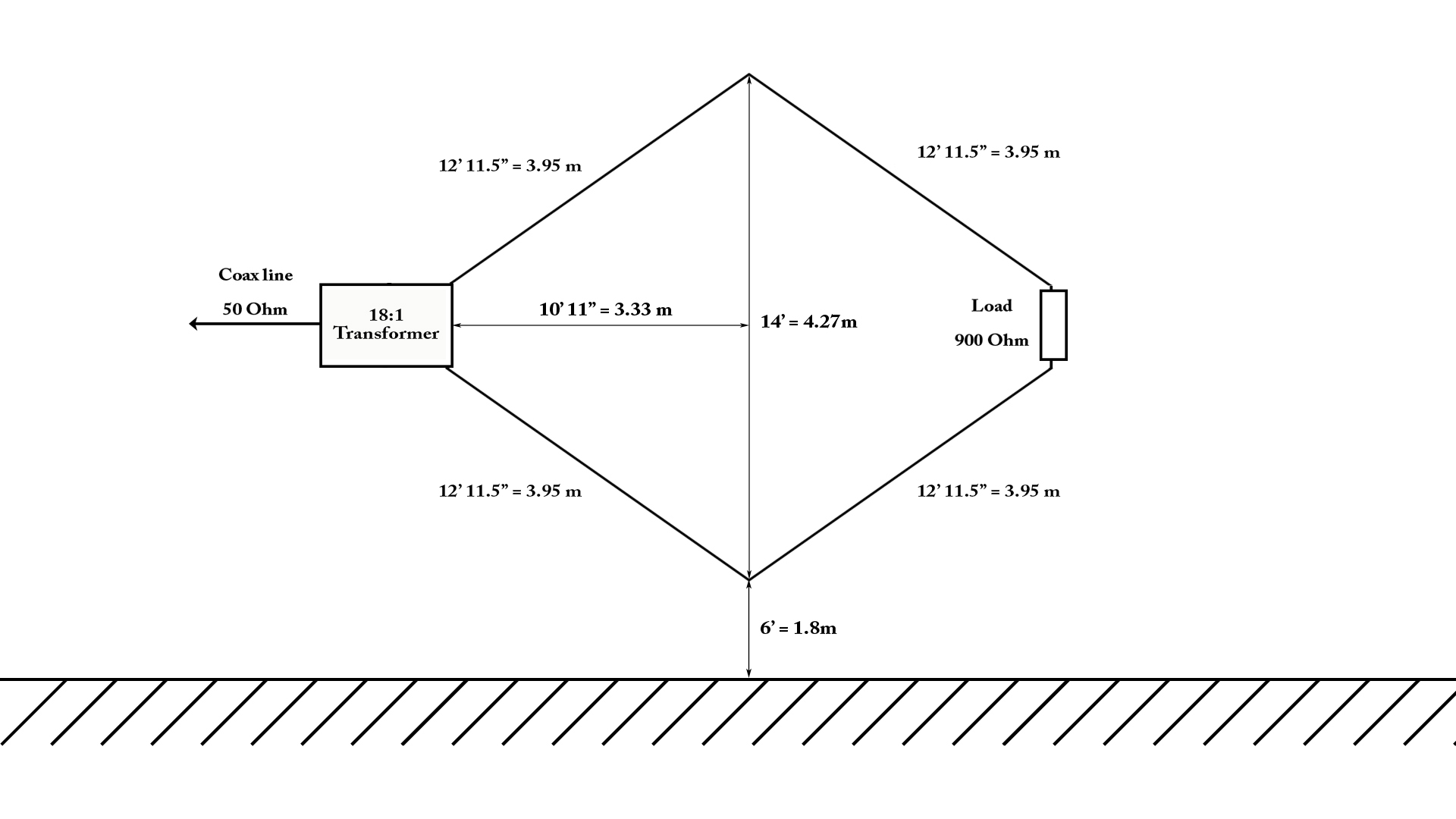

These two things you will need – to build your own Small Loop antenna for low band reception. Similar KIT is working on our own “diamond rotary loop” antenna.
This is 50 Ohm application – coax between the transformer and your receiver – is RG-58/RG-213 with appropriate connector.
There are 3 options of this hardware available:
LA50-BNC – BNC connector
LA50-239 – SO-239 connector
LA50-N – N-type connector
You can find more products for Ham Radio on our website: https://minsradio.com
