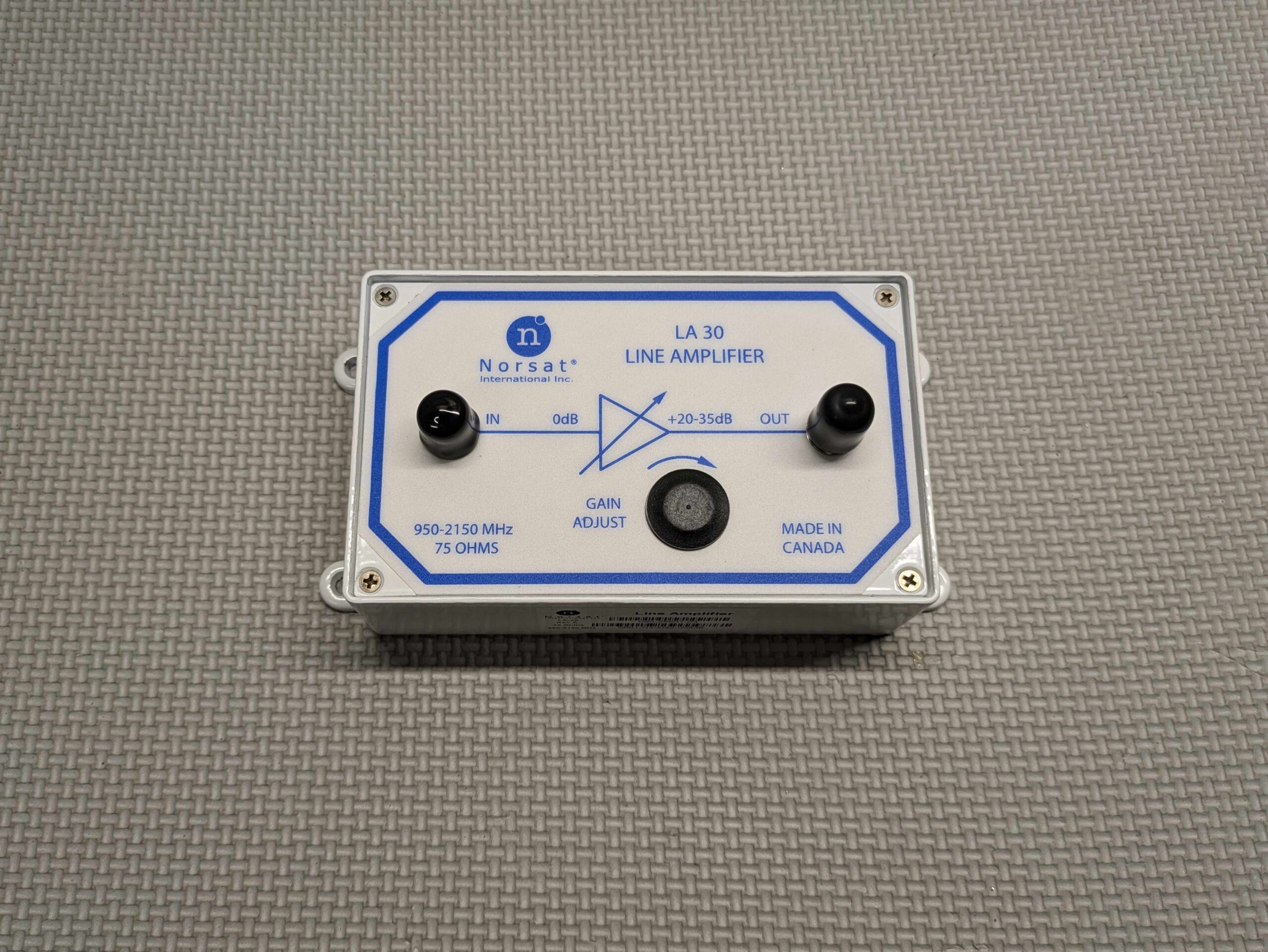

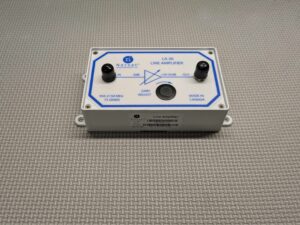

Norsat’s line Amplifiers provide a range of amplification at 950 to 2,150 MHz and handles the current requirement of the LNB. It features a rugged, die cast aluminum chassis and is environmentally sealed and moisture resistant.
Applications
- Provides a range of amplification at 950 to 2150 MHz
- Passes L-Band, 10 MHz, 22 kHz and DC signals with minimal loss
- Handles the current requirement of the LNB

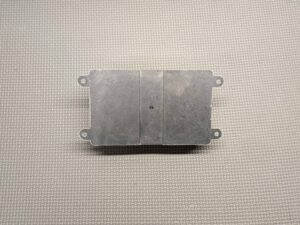

- Rugged die cast aluminum chassis
- Environmentally sealed and moisture resistant
Specifications:
- Input Requirements: -85 to -40 dBm (nominal), -30 dBm max., -5 dBm (no damage for duration 5 seconds max.)
- Noise Figure: 5 dB max.
- Input VSWR: 2.2 : 1 max.
- Output VSWR: 2.2 : 1 max.
- Gain: 6 dB min. to 35 dB max.
- Gain Flatness: ≤ 4 dB p-p
- Output P1dB: + 2 dBm min.
- DC Power: +12V to +30V DC
- Current: 175 mA max.
- DC Through-Current 1 1 A max. between 12V to 30V
- Operational Temperature: -30°C ~ +50°C
- Storage Temperature: -40°C ~ +70°C

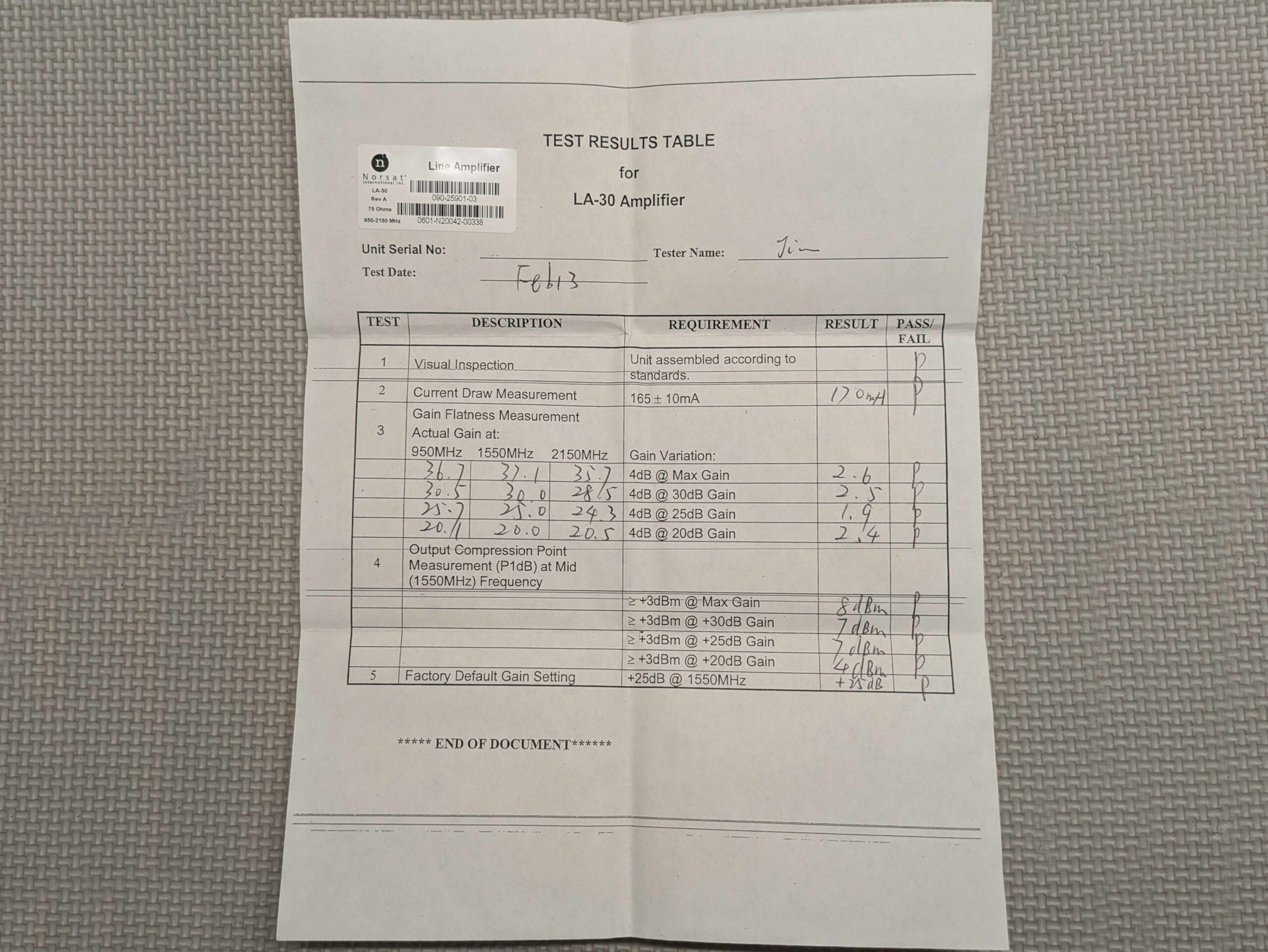

Acceptance test protocol included
